Non-standard Service Request Workflow

Workflow

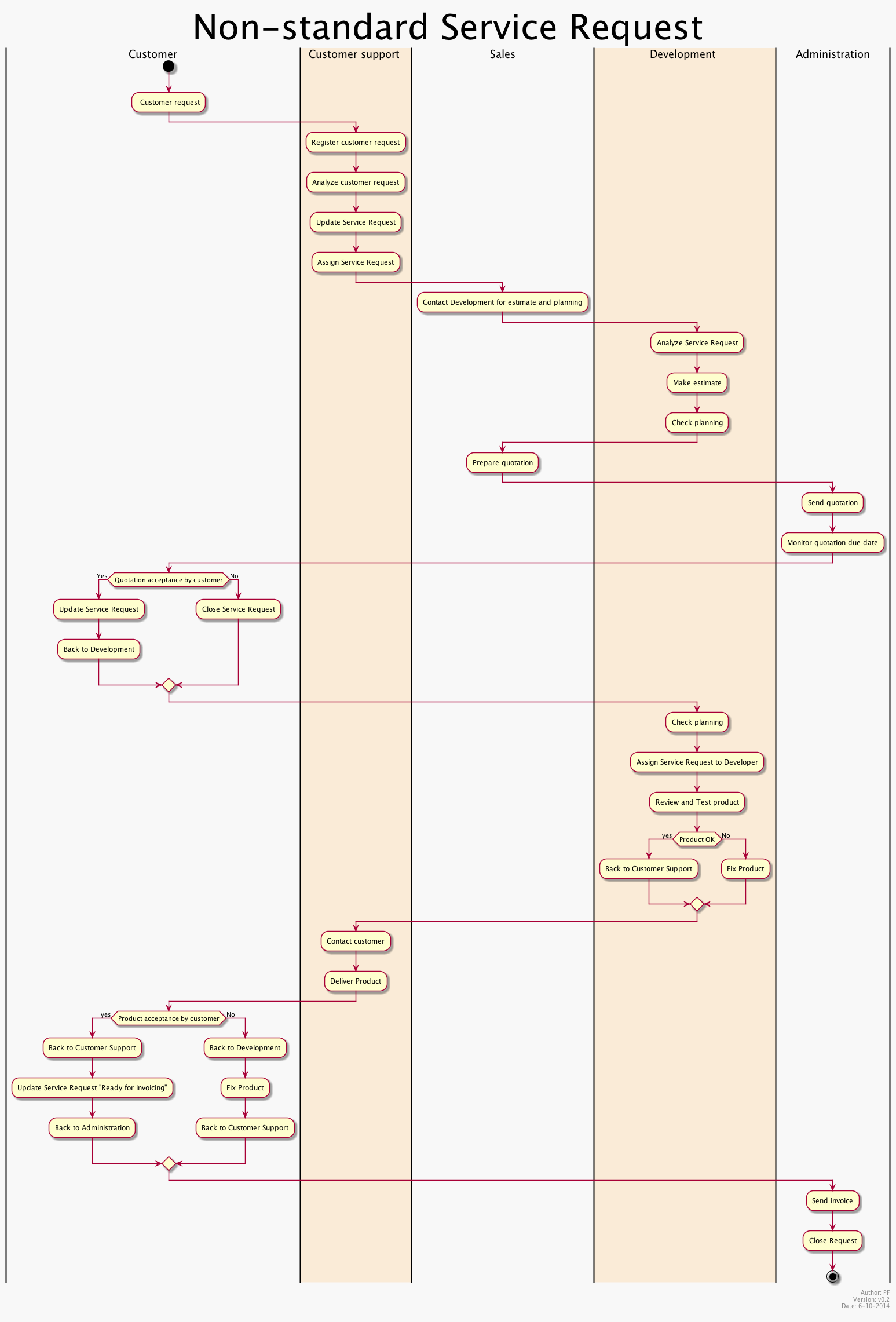

Typical workflow for non standard customer support requests.

This is created by the following PlantUML code

PlantUML source
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
title: <size:60>Non-standard Service Request</size>

| Customer |
start
: Customer request;
|#AntiqueWhite|Customer support |
:Register customer request;
:Analyze customer request;
:Update Service Request;
:Assign Service Request;
| Sales |
:Contact Development for estimate and planning;
|#AntiqueWhite|Development |
:Analyze Service Request;
:Make estimate;
:Check planning;
| Sales |
:Prepare quotation;
| Administration |
:Send quotation;
:Monitor quotation due date;
| Customer |
if (Quotation acceptance by customer) then (Yes)
:Update Service Request;
:Back to Development;
else (No)
:Close Service Request;
endif
|#AntiqueWhite|Development |
:Check planning;
:Assign Service Request to Developer;
:Review and Test product;
if (Product OK) then (yes)
:Back to Customer Support;
else (No)
:Fix Product;
endif
|#AntiqueWhite|Customer support |
:Contact customer;
:Deliver Product;
| Customer |
if (Product acceptance by customer) then (yes)
:Back to Customer Support;
:Update Service Request "Ready for invoicing";
:Back to Administration;
else (No)
:Back to Development;
:Fix Product;
:Back to Customer Support;
endif
| Administration |
:Send invoice;
:Close Request;
stop
right footer

Author: PF
Version: v0.2
Date: 6-10-2014

endfooter
